728619 E

728619 E

Kategori
Marka
SKF
Stok Kodu
728619 E

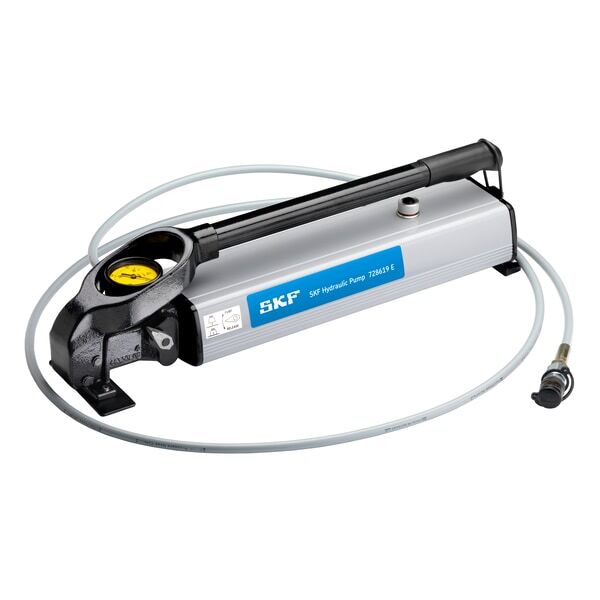

The SKF 728619 E is a two-stage pump suitable for use with SKF Supergrip Bolts and to mount bearings or components where a maximum pressure of 1500 bar (150 MPa / 21750 psi) is required. Also suitable for Oil injection applications such gears, coupling and sleeves, where the maximum pressure is 1500 bar (150 MPa / 21750 psi). The 728169 E can be used with all sizes of SKF Hydraulic Nuts. Supplied in a sturdy carrying case

Faydalar

  • ✔ Oil container capacity 2550 cm³ (155 in³)
  • ✔ Two stage pressure pumping
  • ✔ Fitted with a pressure gauge
  • ✔ Supplied with an extra litre of fluid
  • ✔ Packed in a sturdy carrying case
Boyutlar
Boyutlar (G x U x Y)130 x 620 x 170 mm
Case dimensions (l x h x w)753 x 190 x 330 mm
Özellikler
TipHand operated pump
Önerilen uygulamalarSKF Supergrip boltsOil injection applications where the maximum pressure is 150 MPa (21 750 psi)All sizes SKF hydraulic nuts
Pompa tipiTwo stage
Strok başına hacim, 1. kademe20 cm³, below 2.5 MPa
Strok başına hacim 2. kademe1.0 cm³, above 2.5 MPa
Yağ haznesi kapasitesi2 400ml
Basınç göstergesievet
Hortum uzunluğu3 000mm
Filled with oilYes, with SKF Mounting Fluid LHMF 300
Handle force at maximum oil pressure370N
Bağlantı nipeliG 1/4 hızlı bağlantı
Yükseltme yöntemi için uygundurHayır
Suitable for Hydraulic nut HMV range9  –  200
Yatak malzemesiAluminium pump body
RenkGreyBlack
Çalıştırma sıcaklığı aralığı10  –  35°C
Önerilen depolama sıcaklığı10  –  40°C
Bağıl nem0 to 75%, non-condensing
İçerikPump with mounting fluidpressure hosequick connection couplingquick connection nipplepressure gaugemetal case1l can of mounting fluid
Performans
Maksimum basınç1 500bar
Maksimum basınç150MPa
Lojistik
Ürün net ağırlığı19.9kg
eClass kodu23-05-19-01
UNSPSC kodu27112908
