HMV 200E

HMV 200E

Kategori
Marka
SKF
Stok Kodu
HMV 200E

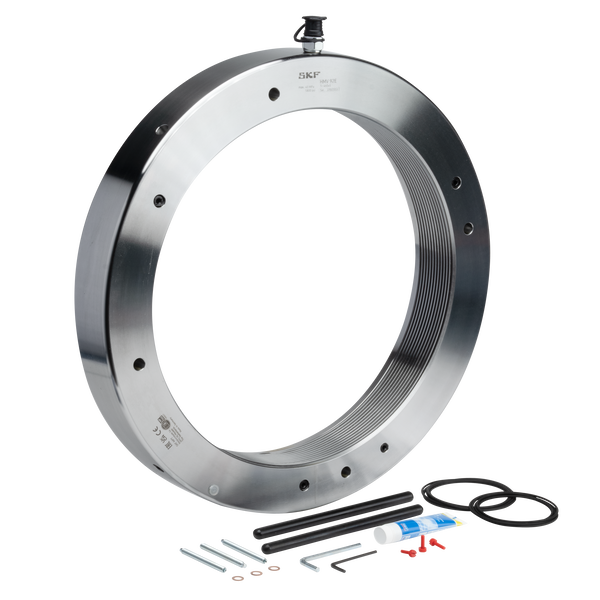

Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.

Faydalar

  • ✔ Quick connection coupling can be fitted on the face or side of the nut
  • ✔ A spare set of piston seals and maintenance kit is included
  • ✔ Supplied with a quick connection coupling to fit the SKF hydraulic pumps
  • ✔ Equipped with eyebolts, two tommy bars and four mating holes on their front face
Özellikler
TipMetric thread
Boyutlar
Connecting threadTr 1000x8
Diş biçimiISO 2901-1977 tolerance class 7H
Maksimum piston hacmi34mm
Dış çap1 180mm
Piston alanı145 800mm²
Piston iç çapı1 002mm
Piston dış çapı1 150mm
Piston genişliği17mm
Genişlik88mm
Lojistik
eClass kodu23-05-19-01
Ürün net ağırlığı250kg
UNSPSC kodu73152101
Performans
Maksimum basınç250bar
Maksimum basınç25MPa
