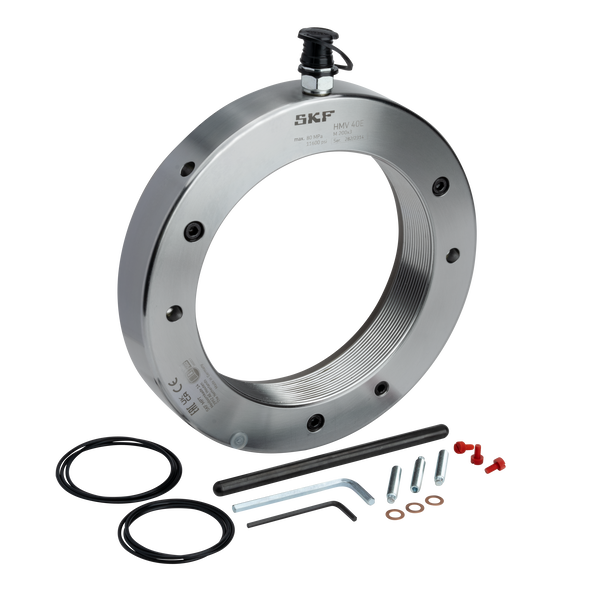

HMV 40E

HMV 40E

Kategori
Marka
SKF
Stok Kodu
HMV 40E

Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.

Faydalar

  • ✔ Quick connection coupling can be fitted on the face or side of the nut
  • ✔ A spare set of piston seals and maintenance kit is included
  • ✔ Supplied with a quick connection coupling to fit the SKF hydraulic pumps
  • ✔ Equipped with eyebolts, two tommy bars and four mating holes on their front face
Özellikler
TipMetric thread
Boyutlar
Connecting threadM 200x3
Diş biçimiISO 965/111-1980 tolerance class 6H
Maksimum piston hacmi8mm
Dış çap282mm
Piston alanı12 500mm²
Piston iç çapı201mm
Piston dış çapı271mm
Piston genişliği8mm
Genişlik43mm
Lojistik
eClass kodu23-05-19-01
Ürün net ağırlığı11.8kg
UNSPSC kodu73152101
Performans
Maksimum basınç800bar
Maksimum basınç80MPa
