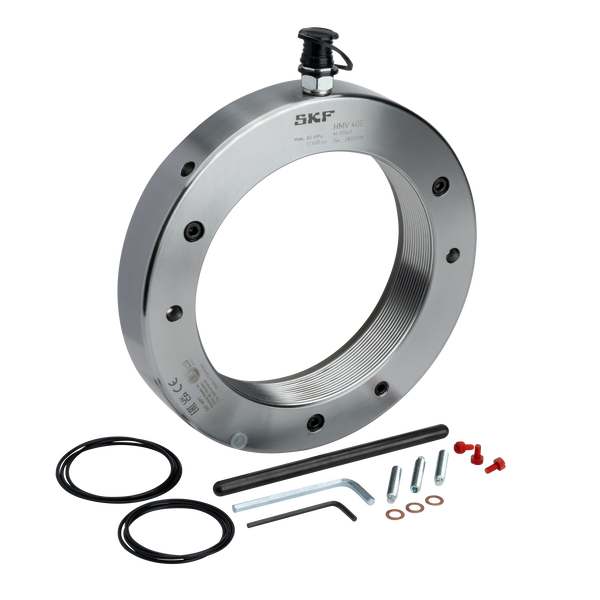

HMV 60E

HMV 60E

Kategori
Marka
SKF
Stok Kodu
HMV 60E

Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.

Faydalar

  • ✔ Quick connection coupling can be fitted on the face or side of the nut
  • ✔ A spare set of piston seals and maintenance kit is included
  • ✔ Supplied with a quick connection coupling to fit the SKF hydraulic pumps
  • ✔ Equipped with eyebolts, two tommy bars and four mating holes on their front face
Özellikler
TipMetric thread
Boyutlar
Connecting threadTr 300x4
Diş biçimiISO 2901-1977 tolerance class 7H
Maksimum piston hacmi14mm
Dış çap404mm
Piston alanı23 600mm²
Piston iç çapı302mm
Piston dış çapı386mm
Piston genişliği10mm
Genişlik51mm
Lojistik
eClass kodu23-05-19-01
Ürün net ağırlığı32kg
UNSPSC kodu73152101
Performans
Maksimum basınç800bar
Maksimum basınç80MPa
