HMV 68E

HMV 68E

Kategori
Marka
SKF
Stok Kodu
HMV 68E

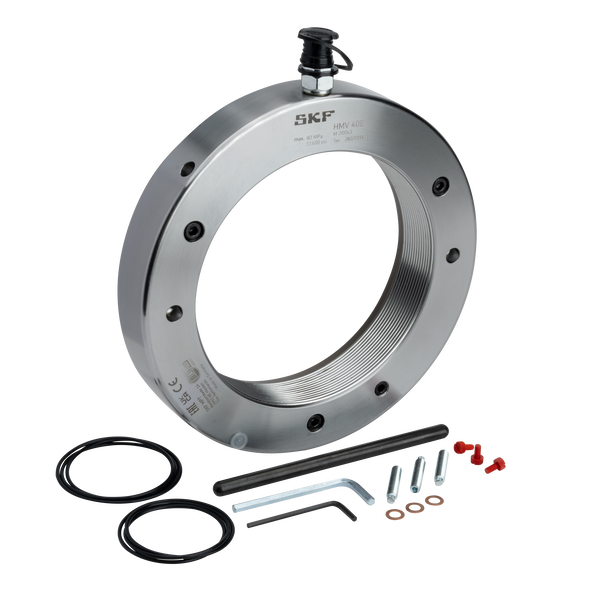

Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.

Faydalar

  • ✔ Quick connection coupling can be fitted on the face or side of the nut
  • ✔ A spare set of piston seals and maintenance kit is included
  • ✔ Supplied with a quick connection coupling to fit the SKF hydraulic pumps
  • ✔ Equipped with eyebolts, two tommy bars and four mating holes on their front face
Özellikler
TipMetric thread
Boyutlar
Connecting threadTr 340x5
Diş biçimiISO 2901-1977 tolerance class 7H
Maksimum piston hacmi14mm
Dış çap450mm
Piston alanı28 400mm²
Piston iç çapı342mm
Piston dış çapı430mm
Piston genişliği10mm
Genişlik54mm
Lojistik
eClass kodu23-05-19-01
Ürün net ağırlığı41kg
UNSPSC kodu73152101
Performans
Maksimum basınç400bar
Maksimum basınç40MPa
