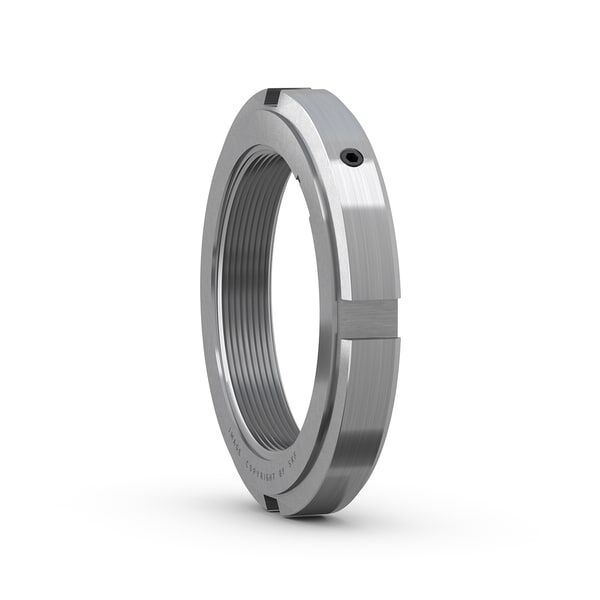

KMFE 16

KMFE lock nuts with integral locking screw are designed to locate CARB toroidal roller bearings, sealed spherical roller bearings and sealed self-aligning ball bearings axially on a shaft. They reduce the cost of the shaft as no keyway is required. Installation with an integral set screw is quick and easy and no separate locking device is necessary. Maximum axial run-out locating face and thread 0.02 to 0.03 mm.

Faydalar

• ✔ Kama yuvası gerekmez
• ✔ Amaçlanan uygulamalar için basit ve sağlam kilitleme
• ✔ Tekrar kullanılabilir
• ✔ Uygun maliyetli
• ✔ M 20x1 ila M 200x3 dişler için mevcuttur (4 ila 40 ebatları)
