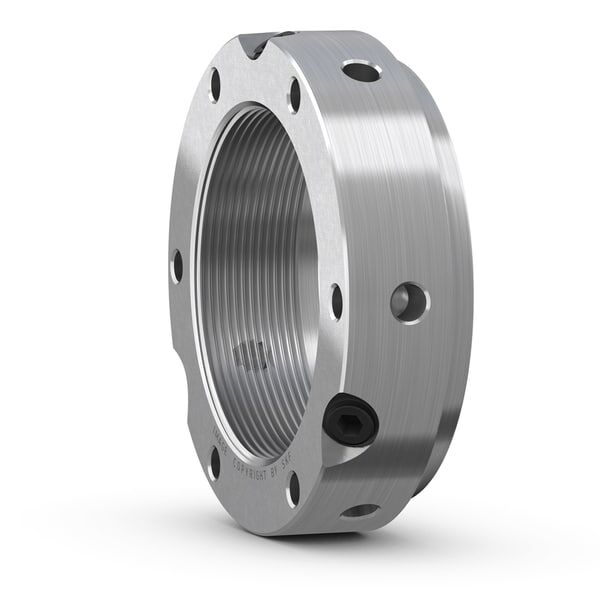

KMTA 10

KMTA precision lock nuts have a cylindrical outside surface and are intended for applications where high precision, simple assembly and reliable locking are required. The three equally-spaced locking pins enable these lock nuts to be accurately positioned at right angles to the shaft. However, they can also be adjusted to compensate for slight angular deviations of adjacent components. Maximum axial run-out between the locating face and thread (up to size 40): 0.005 mm.

Faydalar

• ✔ Kama yuvası gerekmez
• ✔ Yüksek eksenel yüklere dayanır
• ✔ Güvenilir, etkili kilitleme mekanizması
• ✔ Sık ve basit kurulum ve sökme için tasarlanmıştır
• ✔ M 25x1,5 ila M 200x3 dişler için mevcuttur (5 ila 40 ebatları)
