TKRS 31

TKRS 31

Kategori
Marka
SKF
Stok Kodu
TKRS 31

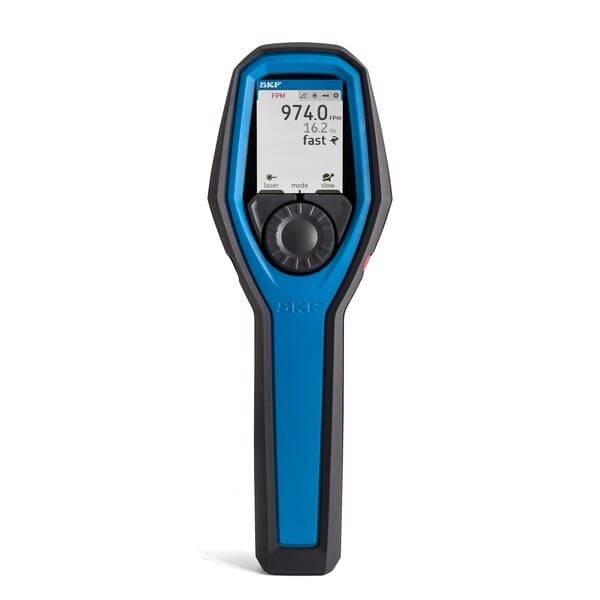

The SKF Stroboscope TKRS 31 is a compact and advanced stroboscope for visual inspection of running machines. The instrument features a built-in laser tachometer to measure the rotation speed and automatically synchronizes the flash for instant sharp images. The input/output channel can be used to control the flash with an input signal or output the tachometer signal to other devices. The pro operating mode offers the user more advanced functions such as advanced signal modifications or automatic slow motion phase shift.

Faydalar

  • ✔ Flaş senkronizasyonlu dahili lazer takometre
  • ✔ Ağır çekimde faz kayması gibi ek özelliklere sahip Pro modu
  • ✔ Sinyal modifikasyonu ile giriş ve çıkışı tetikleyin
  • ✔ Sağlam ve ergonomik tasarım
  • ✔ 3 x AA pil, tetik fişi ve yansıtıcı bantlarla birlikte sağlam bir taşıma çantasında verilir
Performans
Light power at 0.3 m (12 in) distance5 600lx
Brightness (flash duration, in degrees)0.2  –  5°
Flashrate (in Flashes per Minute)30  –  300000FPM
Lojistik
Ürün net ağırlığı0.82kg
eClass kodu23-05-19-01
UNSPSC kodu41112202
Özellikler
Önerilen uygulamalarUsed for visual inspection of rotating machines with e.g. bearings, gears, belts, fans and chainsAlso used in textile industry for inspection of patterns
Flash source6 LED's
Color of light5000  –  8000K
Lazer hızı ölçümüEvet
Faz kaymasıEvet, yavaş çekim fonksiyonuyla
EkranLCD Color with LED backlighting
Yazılım özellikleriFlash mode, Tachometer mode, External trigger mode
External trigger range (in Flashes per Minute)30  –  300000FPM
Harici tetik bağlantısıPlug: 3.5 mm (included)Input: 3–30 V, max. 5 mA (NPN)Output: up to 30 V, max. 50 mA (NPN)
Sinyal modifikasyonuKenar seçimiÇarpanBölenGecikme
Otomatik kapanma10 min, 5 min, off
Tripod connectorYes, (1/4-20 UNC)
Yatak malzemesiPC/ABS blend, overmoulded with TPU rubber
RenkBlueDark Grey
Pil3x AA (Alkaline (incl.) or Rechargable)
Pil ömrü3.75h
Güç adaptörüHayır
Cihaz boyutları78 x 225 x 50 mm
Cihaz ağırlığı300g
Koruma derecesi (IP)IP 30
Çalıştırma sıcaklığı aralığı0  –  40°C
Önerilen depolama sıcaklığı-20  –  45°C
Bağıl nem10 to 90%, non-condensing
Case dimensions (l x h x w)260 x 85 x 180 mm
İçerikStroboscope3x AA batteriesReflective tape (TKRT -RTAPE)External trigger plug (TKRS 31-PLUG)Instructions for use (MP5487)1x Carrying case (size A)
