TKST 21

TKST 21

Kategori
Marka
SKF
Stok Kodu
TKST 21

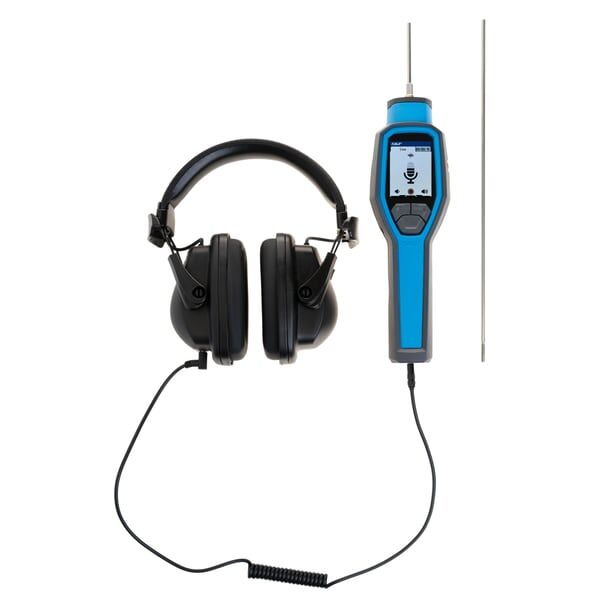

The advanced electronic stethoscope TKST 21 includes a headset and two probes and is supplied in a sturdy carrying case. The large color display guides the user easily through the menus. Sounds can be captured and saved on the instrument in order to analyse them. Pre-recorded audio samples of the most common problematic bearing noises are available in the device. The audio samples allow reliable identification of the possible cause of the noise. The handset has two outputs for the amplified signal (headset and recorder connection). The headset is an approved ear defender.

Faydalar

  • ✔ User friendly menu on a large, backlit colour display
  • ✔ Easy one-hand operation buttons
  • ✔ Lightweight and ergonomic designed instrument
  • ✔ Off-line and online pre-recorded demonstration samples
  • ✔ High quality, noise cancelling headset
  • ✔ Easily adjustable volume control and mute function
  • ✔ Supplied with two probes
Özellikler
Frekans30  –  15000Hz
Yazılım özellikleriGüç açıkSes seviyesiPil zayıfotomatik kapanmaEkran parlaklığı
Maks. kayıt cihazı çıkışı250mV
Headset impedance32Ω
Kulaklık ağırlığı290g
Otomatik kapanmaEvet, ayarlanabilir - 5 dak - 10 dak
Ses seviyesi ayarlama adımları10
Yatak malzemesiPC/ABS blend, overmoulded with TPU rubber
RenkBlueDark Grey
Pil2x AA (Alkaline (incl.) or Rechargable)
Pil ömrü5h
Probe lenghts70 mm300 mm
Cihaz boyutları230 × 70 × 38 mm
Cihaz ağırlığı300g
Koruma derecesi (IP)IP 40
Çalıştırma sıcaklığı aralığı0  –  40°C
Önerilen depolama sıcaklığı-20  –  45°C
Bağıl nem10 to 90%, non-condensing
Case dimensions (l x h x w)360 x 110 x 260 mm
İçerik1x TKST 21 Handset1x Headset1x Probe 70mm1x Probe 300mm2x AA batteries1x printed instructions for use1x Carrying case (size B)
Lojistik
Ürün net ağırlığı1.66kg
eClass kodu23-05-19-01
UNSPSC kodu41112202
