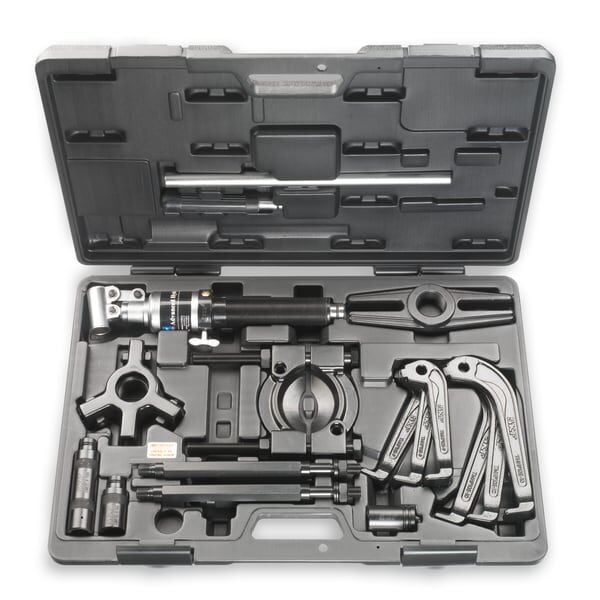

| Boyutlar |
|---|
| Workpiece outer diameter range, using arms | Set 1: 50 to 110 mmSet 2: 75 to 170 mm | | Reach, using arms (max) | Set 1: 65 mmSet 2: 115 mm | | Pençe yüksekliği | 8mm | | Claw length | 15mm | | Claw width | 25mm | | Hydraulic spindle, piston stroke | 80mm | | Puller adaptor thread | UN 1.5 x 16 tpi | | Workpiece outer diameter range, using separator | 26 to 160 mm | | Shaft diameter range, using separator | 20 to 100 mm | | Reach, using separator (max) | 250 mm, using provided extension rods | | Total spindle length | 505 mm, incl. 2 available extension pieces | | Lojistik |
|---|
| Ürün net ağırlığı | 15.1kg | | eClass kodu | 23-05-19-01 | | UNSPSC kodu | 27111712 |
| | Özellikler |
|---|
| Önerilen uygulamalar | For dismounting of bearings, gears, pulleys and other industrial ring shaped components from shafts in industrial, construction and agricultural applications. Option to choose from jaw puller or separator depending on the space surrounding the component. | | Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) | Evet | | Suitable for bearing dismounting from a Tapered seating (conical shaft) | Evet | | Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) | Evet | | Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) | Hayır | | Suitable for workpiece dismounting from a Housing | Hayır | | Suitable for bearing type(s) | All | | Dismounting force generation | Hydraulic spindle,TMHS 100 | | Özel özellikler | Centring and self locking system for firm grip of the componentUseable as 2 or 3 armed puller, Provided with 2 different arm sets, Provided with various spindle extension pieces to quickly adapt the reachProvide the possibility with the separator to engage the inner ring of the bearing, thus making sure that no withdrawal force is transmitted through the rolling elementsComes with extension rods to allow useage on longer shaftsHydraulic spindle with integrated safety valve for safer use | | Pulling force (max) | 100kN | | Total number of arms in kit | 2 sets of 3 | | Arms | Set 1, TMHP 10E-9 with arm length 140 mmSet 2, TMHP 10E-10 with arm length 190 mm | | Separator height | 25mm | | Spindle nose piece | yes, ⌀ 30mm | | Renk | BlackSilver | | Malzeme | Alloy engineering steels, hardened and tempered | | Kaplama | Black phosphated, Hydraulic spindle with trivalent chromium parts | | Önerilen depolama sıcaklığı | 5 – 40°C | | Bağıl nem | max 75% | | Case dimensions (l x h x w) | 580 x 410 x 70 mm | | İçerik | 1 x arm-assembly stand3 x arms, set 1, TMHP10E-93 x arms, set 2, TMHP10E-101 x separator set1 x beam2 x main rods2 x extension rods, 125 mm1 x hydraulic spindle TMHS 100, with handle bar2 x extension pieces for hydraulic spindle: 50, 100 mm1 x nosepiece with centre point for hydraulic spindleIFUCase |
|
