TMMK 10-35

TMMK 10-35

Kategori
SKF AKSESUAR
Marka
SKF
Stok Kodu
TMMK 10-35
Ürün Bilgisi
Ürün Bilgisi

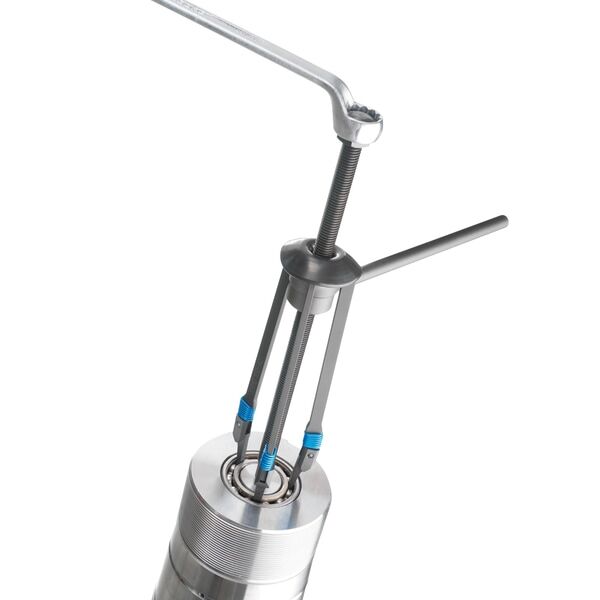

The SKF TMMK series is designed for the quick and precise mounting and dismounting of deep groove ball bearings from and in shafts, housings and blind housings. For mounting, a multi-purpose fitting tool is included which is suitable for mounting bearings as well as bushings, seal rings, belt pulleys and other similar products. The puller for dismounting grips inside the deep groove bearings raceway with especially designed claws.

Faydalar

  • ✔ For selected deep groove bearing the one kit to dismount and mount them
  • ✔ Allows dismounting bearings from all bearing arrangements
  • ✔ Easy to select and assemble puller
  • ✔ Dismounting force generation by hammer or spindle
  • ✔ Multi-purpose fitting tool included
  • ✔ Mounting force generation with a dead blow hammer for higher efficiency
Boyutlar
Workpiece bore diameterFor mounting: 10 to 35 mmFor dismounting 10 to 85 mm
Workpiece depth (max)Dismounting: with arms A1: 135 mm, A2: 135 mm, A3: 137 mm, A4: 162 mm, A5: 167 mmMounting: with Sleeve A: 221 mm, B: 221 mm
Total Arm lengthArm A1: 188 mmArm A2: 189 mmArm A3: 193 mmArm A4: 226 mmArm A5: 231 mm
Effective spindle lengthSpindle S1: 214 mmSpindle S2: 214 mm
Total spindle lengthSpindle S1: 275 mmSpindle S2: 288 mm
Spindle head, hexagon sizeSpindle S1: 19 mmSpindle S2: 24 mm
Sleeve outer lengthsA: 228 mmB: 235 mm
Sleeve, outer diameterA: 25 mmB: 45 mm
Hammer length12.4016in
Hammer width4.5276in
Case dimensions (l x h x w)530 x 110 x 360 mm
Lojistik
Ürün net ağırlığı7.63kg
eClass kodu23-05-19-01
UNSPSC kodu27111712
Özellikler
Mounting force generationÇekiç
Suitable for workpiece mounting on a Cylindrical seating (straight shaft)Evet
Suitable for bearing mounting on a Tapered seating (conical shaft)Not recommended
Suitable for bearing mounting on a Sleeve (adapter or withdrawal)Not recommended
Suitable for workpiece mounting in a Blind arrangement (housing with shaft)Evet
Suitable for workpiece mounting in a HousingEvet
Dismounting force generationMechanical spindle or Sliding hammer
Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)Evet
Suitable for bearing dismounting from a Tapered seating (conical shaft)Hayır
Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)Hayır
Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)Evet
Suitable for workpiece dismounting from a HousingEvet
Suitable for bearing type(s)Mounting: All typesDismounting SKF Deep Groove Ball Bearings (DGBB's)
Allowed temperature of the mounting object-54  –  198°F
Kol sayısı5 sets of 3, named A1 to A5
Bilezik sayısı24
Models of rings2, named A and B
Manşon sayısı2, named A and B
Total number of spindles in kit2
Spindle nose pieceHayır
Hammer typeölü darbe çekiç
Hammer weight1.984lb
HammerheadSturdy polyurethane (PU) preventing damage to the sleeve heads
MalzemeRings: Impact resistant polyamide (PA)Sleeve material: Glassfiber filled polyamide (PA)Hammer: Steel,PUPuller: Medium carbon steels and alloy engineering steels, black phosphated, hardened and tempered
RenkHammer: Black/BluePuller: Black metallicRings: BlackSleeves: Black
İçerik5x sets of 3 arms, size A1 to A52x spindles, size S1 and S21x Spindle holder1x Sliding hammer24x Impact rings sizes A and BImpact sleeves sizes A and B1x Dead blow hammer6x Spindle support rings1x printed Instruction for Use (language free)1x Carrying case (size C)
